XDCR STRUCTRESCAN3D+MID/HITHRU-HULL

XDCR StructureScan 3D + Mid/High CHIRP Thru-Hull Transducer

Unmatched Sonar Clarity & 3D Structure Imaging – Thru-Hull Precision for Serious Offshore Anglers

The XDCR StructureScan 3D + Mid/High CHIRP Thru-Hull Transducer offers an elite-level combination of 3D StructureScan Imaging™ and CHIRP sonar in a rugged thru-hull mount — designed for anglers who demand the most detailed underwater view and accurate fish targeting, even in challenging offshore conditions.

With this powerful combo transducer, you can simultaneously access StructureScan 3D for full underwater 3D visualization and CHIRP sonar for precise target separation in mid-to-high frequency ranges. The thru-hull installation ensures maximum sonar performance at higher speeds and in rougher waters, with reliable deep-water tracking and minimal drag.

🎯 Key Features

• StructureScan® 3D Technology
  Generates stunning three-dimensional views of fish, structure, and terrain beneath and to the sides of your boat.

• Mid/High CHIRP Sonar
  Covers 83/200 kHz CHIRP frequencies, providing better target resolution and noise reduction than traditional sonar.

• Thru-Hull Mounting
  Professional-grade installation ensures optimal sonar return and stability at speed, with minimal turbulence or interference.

• All-in-One Design
  Combines CHIRP sonar, DownScan Imaging™, SideScan, and 3D StructureScan in a single transducer housing.

• Ideal for Larger Boats
  Perfect for offshore center consoles, sportfishing boats, and vessels where hull performance matters.

🧭 Ideal For:

• Deep-sea fishing and offshore game hunting

• Professional sportfishing vessels and large recreational boats

• Anglers who require 3D bottom and structure visualization

• High-speed hulls needing thru-hull mounting for performance

📦 What’s Included

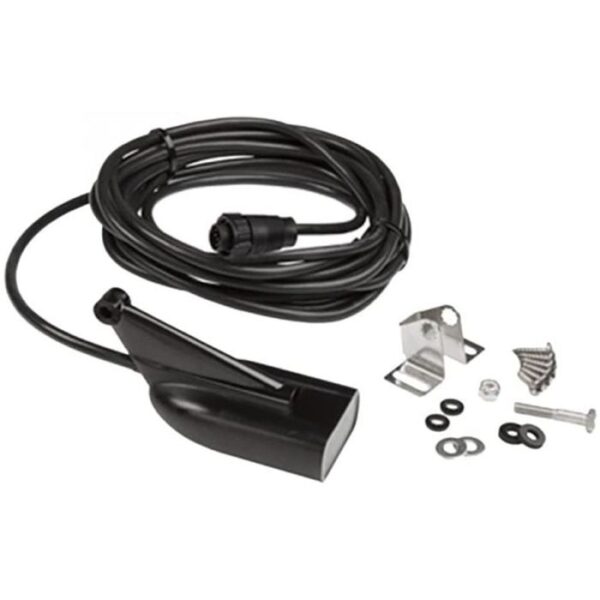

• XDCR StructureScan 3D + Mid/High CHIRP Transducer

• Thru-hull mounting hardware

• Integrated fairing block (model dependent)

• Installation instructions

• Pre-installed cable with appropriate sonar connectors

📋 Technical Specifications

• Sonar Type:

  • 3D StructureScan

  • SideScan / DownScan Imaging™

  • CHIRP Sonar (Mid/High: 83/200 kHz)

• Mount Type: Thru-Hull

• Material: Bronze or stainless steel (varies by model)

• Max Depth:

  • CHIRP Sonar: ~1,000 ft

  • 3D StructureScan: ~300 ft

• Beam Width: Wide-angle 3D scanning

• Cable Length: ~20 ft (6 m)

• Connector Type: Blue 9-pin or yellow module port (based on sonar hub compatibility)

• Temperature Sensor: Built-in

• Waterproof Rating: IPX7

🛠 Installation Notes

This transducer requires a compatible StructureScan 3D module or sonar hub for full 3D imaging functionality. It should be installed by a marine electronics technician to ensure proper sealing, alignment, and performance.
